TP 176 MOBILE Z.E.
Infeed
| Roller opening: | 175 x 191 mm |
| Number of rollers: | 2 |
| Roller position: | Horizontal |
Chipper type
| Chipper type: | Disc chipper |
| Chipping angle: | 90º |
| TP OPTICUT: | Yes |
| TP TWIN DISC: | Yes |
| Number of knifes: | 2 |
| Number of cuts per turn: | 2 |
| Woodchip size: | 10 - 20 mm |
| Rotorspeed: | 1250 r/min |
| Rotordiameter: | 599 mm |
| Rotorweight: | 69 kg |
| Transmission: | DIRECT DRIVEN |
| Counter knife horizontal: | 1 turnable |
| Counter knife vertical: | 1 |
Spout System
| TP VARIO SPOUT: | Option |
| TP FIXED SPOUT: | Standard |
Stress control
| Stress control: | TP PILOT+ with TP EASY CONTROL |
Engine and working hours
| Engine: | ME 1507 PMAC |
| 3 batteries - 65VDC. NMC: | 13 kWh SUB 750 kg - up to 3h |
| 4 batteries - 65VDC. NMC: | 17 kWh SUB 750 kg - up to 4h |
| batteries - 65VDC. NMC: | 21 kWh 792 kg - up to 5h |

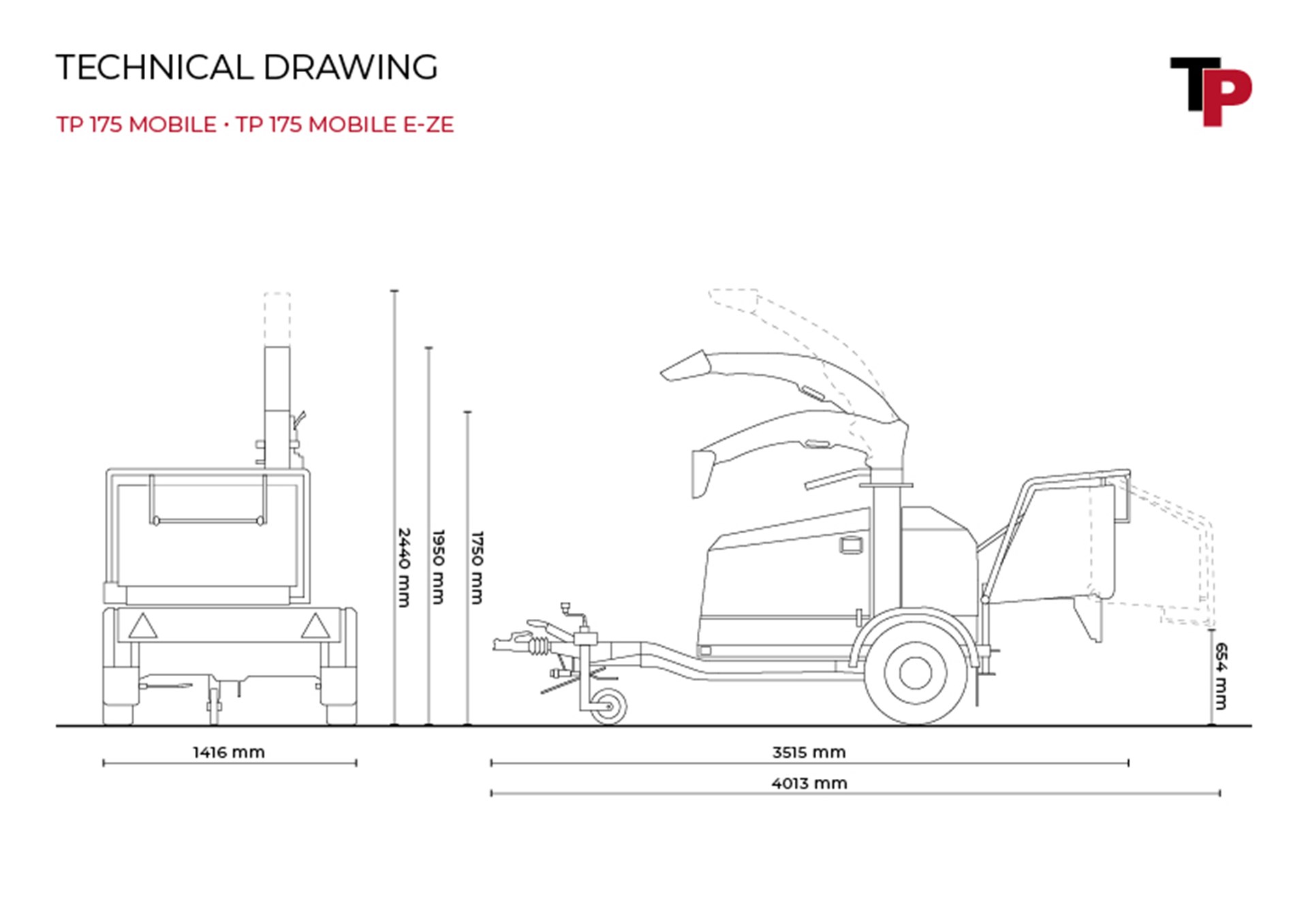

Dimensions
| Length (transport/operation): | 3515 mm/4013 mm |
| Width: | 1416 mm |
| Height (t/o) TP VARIO SPOUT: | 1750 mm/1965-2440 mm |
| Height (t/o) TP FIXED SPOUT: | 1995 mm |
| Weight: | 741 - 792 kg |
